Day 33: Acids and Bases

We will apply the knowledge we learned so far, e.g. thermodynamics, kinetics, molecular structure, etc., to explore two prevalent types of chemical reactions: acid-base reactions and redox/electrochemical reactions.

D33.1 Definition of Acids and Bases

According to the Brønsted-Lowry acid-base definition, a chemical species that donates a proton (hydrogen ion, H+) to another chemical species is called an acid and a chemical species that accepts a proton is a base. (Recall that when a H atom loses an electron, only the proton in the nucleus remains, so a proton is a H+ ion.) An acid-base reaction is the transfer of a proton from a proton donor (acid) to a proton acceptor (base).

The chemical species that remains after an acid has donated a proton is called the conjugate base of that acid. Consider these examples of the generic reaction acid + H2O ⇌ conjugate base + H3O+:

HF + H2O ⇌ F + H3O+
H2SO4 + H2O ⇌ HSO4 + H3O+
HSO4 + H2O ⇌ SO42- + H3O+
NH4+ + H2O ⇌ NH3 + H3O+

Similarly, the chemical species that forms after a base accepts a proton is called the conjugate acid of that base. Consider the following examples of the generic reaction base + H2O ⇌ conjugate acid + OH:

NH3 + H2O ⇌ NH4+ + OH
S2- + H2O ⇌ HS + OH
CO32- + H2O ⇌ HCO3 + OH
F + H2O ⇌ HF + OH

From these examples, we can see that the conjugate acid and conjugate base are paired: the conjugate base of an acid has that acid as its conjugate acid. For instance, NH3 is the conjugate base of NH4+, while NH4+ is the conjugate acid of NH3. Similarly, F‾ is the conjugate base of HF, while HF is the conjugate acid of F‾.

You may have noticed in earlier sections that we wrote H+(aq) to represent hydrogen ions in aqueous solution, while in the preceding reactions we have written H3O+. A H+ ion, a proton, is much smaller than any other cation and therefore is a highly concentrated positive charge that strongly attracts water-molecule dipoles and forms strong hydrogen bonds. Thus, when a Brønsted-Lowry acid transfers a proton to water, more than a single water molecule accepts the proton. Experiments show that as many as six water molecules may be involved, which would make the formula of H+(aq) H13O6+, but the structure changes continually as water molecules move about in the liquid. For Brønsted-Lowry acid-base reactions, we will use H3O+(aq) to emphasize that a proton has been transferred to water and to represent the more complicated actual structure. In general, H+(aq) is appropriate to represent a proton surrounded by many water molecules.

Finally, Brønsted-Lowry acid-base reactions are very fast. Their equilibrium is established quickly and this equilibrium is an important aspect when we consider acid and base strengths later.

Exercise 1: Brønsted-Lowry Acids and Bases

D33.2 Autoionization of Water

In the example reactions above, there are also two other conjugate acid-base pairs: H2O is the conjugate base of its conjugate acid H3O+, and H2O is the conjugate acid of its conjugate base OH. (However, note that H3O+ is not the conjugate acid of OH; these two species are not a conjugate acid-base pair because their structures do not differ by a single H+.)

Hence, H2O can react as an acid or a base depending on the other species involved in the reaction. In pure water, H2O acts as both acid and base—a very small fraction of water molecules donate protons to other water molecules:

This type of reaction, in which a substance ionizes when one molecule of the substance reacts with another molecule of the same substance, is referred to as autoionization.

Pure water undergoes autoionization to a very slight extent: only about two out of every 109 molecules are ionized at 25 °C. The [H3O+]e and [OH]e give an autoionization constant for water, Kw = 1.0 × 10−14 at 25 °C. Because it is the mathematical product of concentrations of two ions, it is also called the ion-product constant for water.

H2O(l) + H2O(l) ⇌ H3O+(aq) + OH(aq)     Kw = [H3O+]e[OH]e = 1.0 × 10−14 at 25 °C

Activity 1: Autoionization of Water

Exercise 2: Autoionization of Water

Water is an example of an amphiprotic chemical species a molecule that could either gain a proton or lose a proton in an acid-base reaction. Amphiprotic species are also amphoteric, a more general term for a species that may act either as an acid or a base by any definition (not just the Brønsted-Lowry definition). For example, the bicarbonate ion is also amphoteric:

HCO3(aq) + H2O(l) ⇌ CO32-(aq) + H3O+(aq)
HCO3(aq) + H2O(l) ⇌ H2CO3(aq) + OH(aq)

Activity 2: Amphiprotic Species

D33.3 pH and pOH

The concentrations of H3O+ and OH in a solution are important for the solution’s acid-base properties and often affect the chemical behaviors of other solutes. A solution is neutral if its [H3O+]e = [OH]e; acidic if its [H3O+]e > [OH]e; and basic if its [H3O+]e < [OH]e.

A common means of expressing values that span many orders of magnitude is to use a logarithmic scale. One such scale is based on the p-function:

pX = -logX

where “X” is the quantity of interest and “log” is the base-10 logarithm. The pH of a solution is therefore defined as:

\text{pH}\; =\; -\text{log}\left(\dfrac{[\text{H}_3\text{O}^+]_e}{mol/L}\right)

The reason for dividing by the units “mol/L” (M) is that [H3O+] has units of mol/L and taking the logarithm of a unit makes no sense. From here on we will assume that you are aware that only the numeric value of a concentration (or other quantity) needs to be used as the argument of a logarithm and we will not explicitly divide by the units.

If a pH value is known, the concentration of hydronium ions can be calculated:

[H3O+]e = 10-pH

Here we assume that you know that units are required for the concentration obtained from this equation and the units are mol/L. Similarly, the hydroxide ion concentration may be expressed as pOH:

pOH = -log[OH]e     and     [OH]e = 10−pOH

Finally, the relation between pH and pOH can be derived from the Kw expression:

Kw = [H3O+]e[OH]e
-log(Kw) = -log([H3O+]e[OH]e)
pKw = -log([H3O+]e) + (-log([OH]e))
pKw = pH + pOH

At 25 °C:

pKw = 14 = pH + pOH

Therefore, at this temperature:

Classification Relative Ion Concentrations pH at 25 °C
acidic [H3O+] > [OH] < 7
neutral [H3O+] = [OH]  7
basic [H3O+] < [OH] > 7

Because Kw is temperature dependent, the correlations between pH values and the acidic/neutral/basic adjectives are different at different temperatures. For example, [H3O+] in pure water at 80 °C is 4.9 × 10−7 M, which corresponds to pH and pOH values of:

pH = -log[H3O+]e = -log(4.9 × 10−7) = 6.31
pOH = -log[OH]e = -log(4.9 × 10−7) = 6.31

At this temperature, neutral solutions have pH = pOH = 6.31, acidic solutions have pH < 6.31 and pOH > 6.31, and basic solutions have pH > 6.31 and pOH < 6.31. This distinction can be important when studying certain processes that occur at temperatures other than 25 °C, such as acid-base reactions in the human body where temperatures are typically 37 °C.

Unless otherwise noted, references to pH values are presumed to be those at 25 °C. Figure 1 shows the relationships among [H3O+], [OH], pH, and pOH, and gives values for these properties for some common substances.

A table is provided with 5 columns. The first column is labeled “left bracket H subscript 3 O superscript plus right bracket (M).” Powers of ten are listed in the column beginning at 10 superscript 1, including 10 superscript 0 or 1, 10 superscript negative 1, decreasing by single powers of 10 to 10 superscript negative 15. The second column is labeled “left bracket O H superscript negative right bracket (M).” Powers of ten are listed in the column beginning at 10 superscript negative 15, increasing by single powers of 10 to including 10 superscript 0 or 1, and 10 superscript 1. The third column is labeled “p H.” Values listed in this column are integers beginning at negative 1, increasing by ones up to 14. The fourth column is labeled “p O H.” Values in this column are integers beginning at 15, decreasing by ones up to negative 1. The fifth column is labeled “Sample Solution.” A vertical line at the left of the column has tick marks corresponding to each p H level in the table. Substances are listed next to this line segment with line segments connecting them to the line to show approximate p H and p O H values. 1 M H C l is listed at a p H of 0. Gastric juices are listed at a p H of about 1.5. Lime juice is listed at a p H of about 2, followed by 1 M C H subscript 3 C O subscript 2 H, followed by stomach acid at a p H value of nearly 3. Wine is listed around 3.5. Coffee is listed just past 5. Pure water is listed at a p H of 7. Pure blood is just beyond 7. Milk of Magnesia is listed just past a p H of 10.5. Household ammonia is listed just before a pH of 12. 1 M N a O H is listed at a p H of 0. To the right of this labeled arrow is an arrow that points up and down through the height of the column. A beige strip passes through the table and to this double headed arrow at p H 7. To the left of the double headed arrow in this beige strip is the label “neutral.” A narrow beige strip runs through the arrow. Just above and below this region, the arrow is purple. It gradually turns to a bright red as it extends upward. At the top of the arrow, near the head of the arrow is the label “acidic.” Similarly, the lower region changes color from purple to blue moving to the bottom of the column. The head at this end of the arrow is labeled “basic.”
Figure 1. The pH and pOH values of some common substances at 25 °C are shown in this chart.

Activity 3: pH and Relative Strengths of Acids

Exercise 3: pH of Aqueous Solutions

The acidity of a solution is typically determined by measuring its pH. The pOH of a solution is not usually measured, but it is easily calculated from an experimentally determined pH value. The pH of a solution can be directly measured using a pH meter (Figure 2), or visually estimated using colored indicators (Figure 3).

This figure contains two images. The first, image a, is of an analytical digital p H meter on a laboratory counter. The second, image b, is of a portable hand held digital p H meter.
Figure 2. (a) A research-grade pH meter used in a laboratory can have a resolution of 0.001 pH units, an accuracy of ± 0.002 pH units, and may cost in excess of 1000. (b) A portable pH meter has lower resolution (0.01 pH units), lower accuracy (± 0.2 pH units), and a far lower price tag. (credit b: modification of work by Jacopo Werther)[/caption]  [caption id="attachment_303" align="aligncenter" width="750"]<img class="wp-image-297" src="https://wisc.pb.unizin.org/app/uploads/sites/564/2020/11/D33_Fig03_UW-Madison-300x98.png" alt="This figure contains two images. Image a shows a variety of colors of solutions in labeled test tubes labeled with p H values from 2 to 11. p H 2 is dark orange. p H 3 is lighter orange. p H 4 is yellow. p H 5 is yellow green. p H 6 is pale green. p H 7 is darker green. p H 8 is light blue green. p H 9 is dark blue. p H 10 is medium-density blue. p H 11 is purple. Image b shows a color scale for paper that is used for measuring p H in the range from 2 to 10. Colors are p H 2, red-orange; p H 4 orange; p H 6 pale orange; p H 8 green; and p H 10 blue. (These are different from the colors in the test tubes.) Several test strips that have been moistened with a drop of solution to evaluate the solution's p H are also shown; these range in color from red-orange to blue." width="750" height="246" /> <strong>Figure 3.</strong> A universal indicator is a mixture of indicators that assumes a different color at different pH values. (a) A universal indicator has been added to solutions in ten test tubes, each with the pH shown at the top of each tube. (b) pH paper contains a different universal indicator that gives different colors when moistened with solutions of differing pH values.  The scale at the top shows colors for even-numbered pH values from 2 to 10.[/caption] <h1><a id="AcidConstantKaandBaseConstantKb"></a>D33.4 Acid Constant <em>K</em><sub>a</sub> and Base Constant <em>K</em><sub>b</sub></h1> The relative strengths of acids and bases may be determined by comparing the equilibrium constants for their ionization reactions. For the reaction of a generic acid, HA, in water: <div id="fs-idm122858592" class="equation" style="text-align: center">HA(<em>aq</em>) + H<sub>2</sub>O(<em>l</em>) ⇌ A<sup>-</sup>(<em>aq</em>) + H<sub>3</sub>O<sup>+</sup>(<em>aq</em>)</div> we write the <strong>acid ionization constant<em> (K</em><sub>a</sub>)</strong> expression as: <div id="fs-idp97870288" class="equation" style="text-align: center">latex K_{\text{a}} = \dfrac{[\text{H}_3\text{O}^{+}]_e[\text{A}^{-}]_e}{[\text{HA}]_e}</div> (Although water is a reactant in the reaction, it is also the solvent with its phase indicated as <em>"l</em>"<em>,</em> so we do not include [H<sub>2</sub>O] in the expression.)  An acid with a larger <em>K</em><sub>a</sub> would have a larger concentration of H<sub>3</sub>O<sup>+ </sup>and A<sup>−</sup> relative to the concentration of the nonionized acid, HA. Thus a stronger acid, which ionizes to a greater extent, has a larger ionization constant than a weaker acid.  For example, these data on acid <a href="https://wisc.pb.unizin.org/chem109fall2021ver02/chapter/ionization-constant/" target="_blank" rel="noopener noreferrer">ionization constants</a>: <table style="margin-left: auto;margin-right: auto;border: 0px"> <tbody> <tr> <td style="text-align: right">CH<sub>3</sub>COOH(<em>aq</em>) + H<sub>2</sub>O(<em>l</em>)</td> <td style="text-align: center">⇌</td> <td style="text-align: left">CH<sub>3</sub>COO<sup>-</sup>(<em>aq</em>) + H<sub>3</sub>O<sup>+</sup>(<em>aq</em>)</td> <td style="text-align: left"><em>K</em><sub>a</sub> = 1.8 × 10<sup>-5</sup></td> </tr> <tr> <td style="text-align: right">HNO<sub>2</sub>(<em>aq</em>) + H<sub>2</sub>O(<em>l</em>)</td> <td style="text-align: center">⇌</td> <td style="text-align: left">NO<sub>2</sub><sup>-</sup>(<em>aq</em>) + H<sub>3</sub>O<sup>+</sup>(<em>aq</em>)</td> <td style="text-align: left"><em>K</em><sub>a</sub> = 7.4 × 10<sup>-4</sup></td> </tr> <tr> <td style="text-align: right">HSO<sub>4</sub><sup>-</sup>(<em>aq</em>) + H<sub>2</sub>O(<em>l)</em></td> <td style="text-align: center">⇌</td> <td style="text-align: left">SO<sub>4</sub><sup>2-</sup>(<em>aq</em>) + H<sub>3</sub>O<sup>+</sup>(<em>aq</em>)</td> <td style="text-align: left"><em>K</em><sub>a</sub> = 1.1 × 10<sup>-2</sup></td> </tr> </tbody> </table> indicate that the order of acid strength is: acetic acid (CH<sub>3</sub>COOH) is a weaker acid than nitrous acid (HNO<sub>2</sub>) which is itself weaker than hydrogen sulfate ion (HSO<sub>4</sub><sup>-</sup>).  We can consider the strength of a base (B) similarly by considering the extend that it will form hydroxide ions in an aqueous solution: <div id="fs-idm119921696" class="equation" style="text-align: center">B(<em>aq</em>) + H<sub>2</sub>O(<em>l</em>) ⇌ HB<sup>+</sup>(<em>aq</em>) + OH<sup>-</sup>(<em>aq</em>)</div> where the <strong>base ionization constant (<em>K</em><sub>b</sub>)</strong> expression is: <div id="fs-idm72726864" class="equation" style="text-align: center">latex K_{\text{b}} = \dfrac{[\text{HB}^{+}]_e[\text{OH}^{-}]_e}{[\text{B}]_e}</div> A stronger base ionizes to a greater extent than does a weaker base. Therefore, a stronger base has a larger <em>K</em><sub>b</sub> than a weaker base.  Notice that <em>K</em><sub>a</sub> and <em>K</em><sub>b</sub> provide a quantitative measure of acid and base strengths—significantly more accurate than qualitative descriptions of "strong acid" or "weak acid".  [h5p id="299"]  Consider the ionization reactions for a conjugate acid base pair, HA and A<sup>−</sup>: <div class="equation" style="text-align: center">HA(aq) + H<sub>2</sub>O(<em>l</em>) ⇌ A<sup>-</sup>(aq) + H<sub>3</sub>O<sup>+</sup>(aq)    latex K_{\text{a}} = \dfrac{[\text{H}_3\text{O}^{+}]_e[\text{A}^{-}]_e}{[\text{HA}]_e}A<sup>-</sup>(aq) + H<sub>2</sub>O(<em>l</em>) ⇌ HA(aq) + OH<sup>-</sup>(aq)    latex K_{\text{b}} = \dfrac{[\text{HA}]_e[\text{OH}^{-}]_e}{[\text{A}^{-}]_e}</div> Adding these two chemical equations yields the equation for the autoionization of water: <div id="fs-idp71522608" class="equation" style="text-align: center"><span style="text-decoration: line-through">HA(aq)</span> + H<sub>2</sub>O(<em>l</em>) + <span style="text-decoration: line-through">A<sup>-</sup>(aq)</span> + H<sub>2</sub>O(<em>l</em>) ⇌ <span style="text-decoration: line-through">A<sup>-</sup>(aq)</span> + H<sub>3</sub>O<sup>+</sup>(aq) + <span style="text-decoration: line-through">HA(aq)</span> + OH<sup>-</sup>(aq)</div> When two equilibria sum to a third equilibrium, the product of the first two equilibrium constants equals the third equilibrium constant: <div id="fs-idm141982832" class="equation" style="text-align: center">latex K_{\text{a}}\;\times\;K_{\text{b}} = \dfrac{[\text{H}_3\text{O}^{+}]_e[\text{A}^{-}]_e}{[\text{HA}]_e}\;\times\;\dfrac{[\text{HA}]_e[\text{OH}^{-}]_e}{[\text{A}^{-}]_e} = [\text{H}_3\text{O}^{+}]_e[\text{OH}^{-}]_e = K_{\text{w}}</div> For example, at 25 °C, <em>K</em><sub>a</sub> of acetic acid (CH<sub>3</sub>COOH) is 1.8 × 10<sup>−5</sup> M, and <em>K</em><sub>b</sub> of its conjugate base, acetate anion (CH<sub>3</sub>COO<sup>-</sup>), is 5.6 × 10<sup>−10</sup> M. The product of these two constants is indeed equal to <em>K</em><sub>w</sub>: <div id="fs-idm154051696" class="equation" style="text-align: center"><em>K</em><sub>a</sub> × <em>K</em><sub>b</sub> = (1.8 × 10<sup>−5</sup> M) × (5.6 × 10<sup>−10</sup> M) = 1.0 × 10<sup>−14</sup> = <em>K</em><sub>w</sub></div> This relationship tells us that stronger acids form weaker conjugate bases, and weaker acids form stronger conjugate bases.  [caption id="" align="aligncenter" width="700"]<img class="" src="https://wisc.pb.unizin.org/app/uploads/sites/564/2020/11/CNX_Chem_14_03_strengths.jpg" alt="The diagram shows two horizontal bars. The first, labeled, ``Relative acid strength,'' at the top is red on the left and gradually changes to purple on the right. The red end at the left is labeled, ``Stronger acids.'' The purple end at the right is labeled, ``Weaker acids.'' Just outside the bar to the lower left is the label, ``K subscript a.'' The bar is marked off in increments with a specific acid listed above each increment. The first mark is at 1.0 with H subscript 3 O superscript positive sign. The second is ten raised to the negative two with H C l O subscript 2. The third is ten raised to the negative 4 with H F. The fourth is ten raised to the negative 6 with H subscript 2 C O subscript 3. The fifth is ten raised to a negative 8 with C H subscript 3 C O O H. The sixth is ten raised to the negative ten with N H subscript 4 superscript positive sign. The seventh is ten raised to a negative 12 with H P O subscript 4 superscript 2 negative sign. The eighth is ten raised to the negative 14 with H subscript 2 O. Similarly the second bar, which is labeled ``Relative conjugate base strength,'' is purple at the left end and gradually becomes blue at the right end. Outside the bar to the left is the label, ``Weaker bases.'' Outside the bar to the right is the label, ``Stronger bases.'' Below and to the left of the bar is the label, ``K subscript b.'' The bar is similarly marked at increments with bases listed above each increment. The first is at ten raised to the negative 14 with H subscript 2 O above it. The second is ten raised to the negative 12 C l O subscript 2 superscript negative sign. The third is ten raised to the negative ten with F superscript negative sign. The fourth is ten raised to a negative eight with H C O subscript 3 superscript negative sign. The fifth is ten raised to the negative 6 with C H subscript 3 C O O superscript negative sign. The sixth is ten raised to the negative 4 with N H subscript 3. The seventh is ten raised to the negative 2 with P O subscript 4 superscript three negative sign. The eighth is 1.0 with O H superscript negative sign." width="700" height="242" /> <strong>Figure 4.</strong> This diagram shows the relative strengths of conjugate acid-base pairs, as indicated by their ionization constants in aqueous solution. Conjugate acids are above their conjugate bases.[/caption]  [caption id="" align="aligncenter" width="749"]<img class="" src="https://wisc.pb.unizin.org/app/uploads/sites/564/2020/11/CNX_Chem_14_03_Corresp.jpg" alt="This figure includes a table separated into a left half which is labeled ``Acids'' and a right half labeled ``Bases.'' A red arrow points up the left side, which is labeled ``Increasing acid strength.'' Similarly, a blue arrow points downward along the right side, which is labeled ``Increasing base strength.'' Names of acids and bases are listed next to each arrow toward the center of the table, followed by chemical formulas. Acids listed top to bottom are sulfuric acid, H subscript 2 S O subscript 4, hydrogen iodide, H I, hydrogen bromide, H B r, hydrogen chloride, H C l, nitric acid, H N O subscript 3, hydronium ion ( in pink text) H subscript 3 O superscript plus, hydrogen sulfate ion, H S O subscript 4 superscript negative, phosphoric acid, H subscript 3 P O subscript 4, hydrogen fluoride, H F, nitrous acid, H N O subscript 2, acetic acid, C H subscript 3 C O subscript 2 H, carbonic acid H subscript 2 C O subscript 3, hydrogen sulfide, H subscript 2 S, ammonium ion, N H subscript 4 superscript +, hydrogen cyanide, H C N, hydrogen carbonate ion, H C O subscript 3 superscript negative, water (shaded in beige) H subscript 2 O, hydrogen sulfide ion, H S superscript negative, ethanol, C subscript 2 H subscript 5 O H, ammonia, N H subscript 3, hydrogen, H subscript 2, methane, and C H subscript 4. The acids at the top of the listing from sulfuric acid through nitric acid are grouped with a bracket to the right labeled ``Undergo complete acid ionization in water.'' Similarly, the acids at the bottom from hydrogen sulfide ion through methane are grouped with a bracket and labeled, ``Do not undergo acid ionization in water.'' The right half of the figure lists bases and formulas. From top to bottom the bases listed are hydrogen sulfate ion, H S O subscript 4 superscript negative, iodide ion, I superscript negative, bromide ion, B r superscript negative, chloride ion, C l superscript negative, nitrate ion, N O subscript 3 superscript negative, water (shaded in beige), H subscript 2 O, sulfate ion, S O subscript 4 superscript 2 negative, dihydrogen phosphate ion, H subscript 2 P O subscript 4 superscript negative, fluoride ion, F superscript negative, nitrite ion, N O subscript 2 superscript negative, acetate ion, C H subscript 3 C O subscript 2 superscript negative, hydrogen carbonate ion, H C O subscript 3 superscript negative, hydrogen sulfide ion, H S superscript negative, ammonia, N H subscript 3, cyanide ion, C N superscript negative, carbonate ion, C O subscript 3 superscript 2 negative, hydroxide ion (in blue), O H superscript negative, sulfide ion, S superscript 2 negative, ethoxide ion, C subscript 2 H subscript 5 O superscript negative, amide ion N H subscript 2 superscript negative, hydride ion, H superscript negative, and methide ion C H subscript 3 superscript negative. The bases at the top, from perchlorate ion through nitrate ion are group with a bracket which is labeled ``Do not undergo base ionization in water.'' Similarly, the lower 5 in the listing, from sulfide ion through methide ion are grouped and labeled ``Undergo complete base ionization in water.''" width="749" height="672" /> <strong>Figure 5.</strong> The chart shows the relative strengths of conjugate acid-base pairs. The acid and base in a given row are conjugate to each other.[/caption]  Although "strong" and "weak" are relative terms, generally, we refer to acids stronger than H<sub>3</sub>O<sup>+</sup> as strong acids, and bases stronger than OH<sup>-</sup> as strong bases. Because strong acids and strong bases are completely ionized in aqueous solutions, the concentration of nonionized acid or base is essentially zero. For example, in a 0.10-M solution of HCl, [HCl]<sub>e</sub> = 0, [H<sub>3</sub>0<sup>+</sup>]<sub>e</sub> = 0.10 M, and [Cl<sup>−</sup>]<sub>e</sub> = 0.10 M.  A consequence of this complete ionization is that in aqueous solution there is no way to tell whether one strong acid is stronger than another: HCl, HBr, and HI all are completely ionized. This is known as the <em>leveling effect of water</em>. However, when dissolved in some other solvents, these acids do not ionize completely. The extent of ionization increases in the order HCl < HBr < HI, and so HI is the strongest of these acids. Water exerts a similar leveling effect on strong bases.  Many acids and bases are considered "weak". A solution of a weak acid in water is a equilibrium mixture of the nonionized acid, hydronium ion, and the conjugate base of the acid. <div class="textbox textbox--exercises"><header class="textbox__header"> <strong>Activity 4: Determining <em>K</em><sub>a</sub> </strong>  </header> <div class="textbox__content">[h5p id="300"]</div> </div> <div class="textbox textbox--exercises"><header class="textbox__header"> <strong>Activity 5: Using <em>K</em><sub>a</sub> to Calculate Concentrations </strong>  </header> <div class="textbox__content">[h5p id="301"]</div> </div> The <strong>percent ionization</strong> of a weak acid is another measure of the strength of an acid, HA: <div id="fs-idm149756192" class="equation" style="text-align: center">latex \text{percent ionization} = \dfrac{[\text{H}_3\text{O}^{+}]_e}{[\text{HA}]_0}\;\times\;100\%$
A stronger acid, with a higher Ka, has higher percent ionization than a weaker acid (for the same concentration).

The percent ionization for a solution of a weak acid increases with decreasing acid concentration; this can be seen by applying Le Chatelier’s principle to the ionization equilibrium:

HA(aq) + H2O(l) ⇌ A(aq) + H3O+(aq)

Increasing the solution volume for a given quantity of HA added causes the equilibrium to shift to the product side to partially counteract the decrease in total solute concentration.

Exercise 4: Percent Ionization

[h5p id="302"]

D33.5 Acid Strength and Molecular Structure

Acid-base reactions, like many other chemical reactions, involve breaking and forming bonds. Hence, we can use our chemical understanding of molecular structure and stability to understand what makes some acids stronger than others.

We know that an equilibrium favors the thermodynamically more stable side of the reaction, and that the magnitude of the equilibrium constant reflects the energy difference (ΔrG°) between the reactants and products. Therefore, in an acid-base equilibrium, the equilibrium always favors the side with weaker acid and base (these are the more stable species). Consequently, anything that stabilizes the conjugate base of an acid will necessarily make that acid stronger, and anything that stabilizes the acid will make it a weaker acid. This idea is illustrated in Figure 6.

[caption id="attachment_303" align="aligncenter" width="662"] Figure 6. Acid (or base) strength is dependent on the thermodynamics of the acid-base reaction.

Bond Strength

Let’s consider a generic acid:

HA ⇌ A + H+

In general, the stronger the H–A bond is, the more stable the HA molecule is, and the less acidic the substance is. This effect is illustrated by the hydrogen halides:

Relative Acid Strength HF HCl HBr HI
H–X Bond Enthalpy (kJ/mol) 566 431 366 299
pKa 3.2 −6.1 −8.9 −9.3

Note that the “bond enthalpy” values are associated with a different bond breaking reaction, which produces a hydrogen atom instead of a hydrogen ion:

HA ⇌ A· + H·

Nonetheless, bond strengths correlate with acid strength. As you go down the halide group, the overlap between the hydrogen 1s orbital and the valence orbital of the halogen atom decreases, and the H-X bond enthalpy decreases, indicating weaker bonds. As a result, HX acid strength increases as you go down the group.

A similar trend is observed for other groups. For example, for group 16:

H2A ⇌ HA + H+
H2O H2S H2Se H2Te
pKa 14.0 7.0 3.9 2.6

Stabilizing the Excess Charge on Conjugate Base

Electronegativity

When the conjugate base is negatively charged, factors that stabilize the excess negative charge on the conjugate base favor the dissociation of the acid and make the acid a stronger acid. For example, the relative acidity of the acids with second row elements is:

HnA ⇌ Hn-1A + H+
CH4 NH3 H2O HF
pKa 50 36 14.0 3.2

Consider the compounds at both ends of this series: methane and hydrogen fluoride. The conjugate base of CH4 is CH3, and the conjugate base of HF is F. Because fluorine is much more electronegative than carbon, fluorine can better stabilize the extra negative charge in the F anion than carbon can stabilize the extra negative charge in the CH3 anion. Consequently, HF can dissociate and form H+ and F to a much greater extent than CH4 can form H+ and CH3, making HF a much stronger acid than CH4.

The same trend is predicted by analyzing the acids as well: as the electronegativity of A in HnA increases, the A–H bond becomes more polar, favoring dissociation to form Hn-1A and H+. Due to both the increasing stability of the conjugate base and the increasing polarization of the A–H bond in the acid, acid strengths of binary hydrides increase as we go from left to right across a row of the periodic table.

Electron Delocalization

The pKa values of some carboxylic acids are shown in Figure 7.

Figure 7. Line drawings of select carboxylic acid molecules, along with their pKa values (in red) and their names.

The bond that breaks in a carboxylic acid is the O–H bond:

R-COOH ⇌ R-COO‾ + H+

An O–H bond also breaks when an alcohol acts as an acid in an acid-base reaction:

R-OH ⇌ R-O‾ + H+

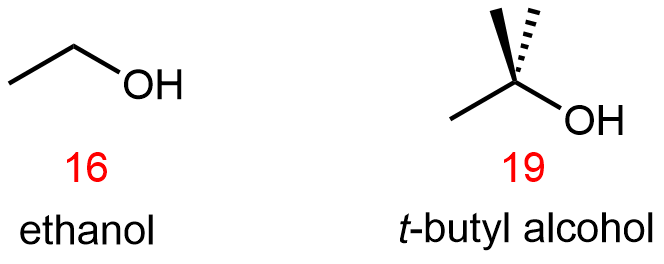

However, when we compare the carboxylic acid pKa‘s with those of comparable alcohols, such as:

it is clear that carboxylic acids are stronger acids than alcohols by over ten orders of magnitude. Why should the presence of a carbonyl group adjacent to a hydroxyl group have such a profound effect on the acidity of the hydroxyl proton?

Both the carboxylic acid and its conjugate base, carboxylate anion, are stabilized by having additional resonance structures that delocalize electron densities. However, the stabilization in carboxylate anion is much greater because the two major resonance structures have equal contributions to the resonance hybrid, and the extra electron density (negative charge) is shared equally between the two oxygen atoms, which have high electronegativity. This stabilization leads to a markedly increased acidity of carboxylic acids.

Figure 8. Greater resonance stabilization of carboxylate ion compared to carboxylic acid results in increased acid strength. Click on each “i” for more information.

Inductive Effect

Atoms (or groups of atoms) in a molecule that are not directly bonded to the acidic H can also influence the molecule’s acidity. They can do so via an inductive effect, that is, they induce a polarization in the distribution of electrons within the molecule. This can be seen by studying the structures in Figure 7 above. Electronegative substituents (F, Cl, Br, I) near the carboxyl group act to increase the acidity of the carboxylic acid. For example, fluoroacetic acid, CH2FCOOH, is significantly more acidic than acetic acid, CH3COOH.

The magnitude of the inductive effect depends on both the nature and the number of halogen substituents, as shown by the pKa values for several acetic acid derivatives:

CH3COOH CH2ClCOOH CHCl2COOH CCl3COOH CF3COOH
pKa 4.74 2.85 1.35 0.77 0.52

Fluorine, which is more electronegative than chlorine, causes a larger inductive effect as it draws electron density away from the acidic proton in the carboxyl group. Moreover, having three halogens causes a larger inductive effect than having two or one. Note that inductive effects can be quite significant. For instance, replacing the –CH3 group of acetic acid by a –CF3 group results in a almost 10,000-fold increase in acidity.

In another example, the acidity of hypohalous acids (HOX ⇌ OX‾ + H+) varies by about three orders of magnitude due to the difference in electronegativity of the halogen atoms:

HOX Electronegativity of X pKa
HOCl 2.73 7.2
HOBr 2.64 8.5
HOI 2.11 10.5

As the electronegativity of X increases, the electrons are drawn more strongly toward the halogen atom and, in turn, away from the H in the O–H bond, thus weakening the O–H bond, enhancing ionization of hydrogen as H+ and making the acid stronger.

Oxoacids

The acidity of oxoacids, with the general formula HOXOn (with n = 0−3), depends strongly on the number of terminal oxygen atoms attached to the central atom X (Figure 8) due to both an inductive effect and increased stabilization of the conjugate base.

Because oxygen is the second most electronegative element, adding terminal oxygen atoms (oxygen atoms only bonded to the central atom) causes electron densities to be drawn away from the O–H bond, thereby increasing the strength of the acid. Figure 9 shows how the H atom becomes steadily more blue from HClO to HClO4, making it easier for the acid to lose the hydrogen as an H+ ion.

Figure 9: The relationship between the acid strengths of the oxoacids of chlorine and the electron density on H in the O–H unit. These electrostatic potential maps show how the electron density on H decreases (darker blue color) as the number of terminal oxygen atoms increases. Blue corresponds to low electron densities, whereas red corresponds to high electron densities. Source: Chlorine oxoacids pKa values from J. R. Bowser, Inorganic Chemistry (Pacific Grove, CA: Brooks-Cole, 1993).

Also important is the effect of electron delocalization that stabilizes the extra negative charge in the conjugate base. For example, in the chlorite anion (ClO2‾), the excess electron density is delocalized equally over both oxygen atoms, whereas in the hypochlorite ion (ClO), the negative charge is largely localized on a single oxygen atom:

As a result of this stabilization of the conjugate base, as well as additional inductive effect, chlorous acid is more than 200,000 times stronger than hypochlorous acid.

The inductive effect is additionally responsible for the trend in the acidities of oxoacids that have the same number of oxygen atoms as we go across a row of the periodic table. For example, H3PO4 is a weak acid, H2SO4 is a strong acid, and HClO4 is one of the strongest acids known. The number of terminal oxygen atoms increases steadily across the row, consistent with the observed increase in acidity. In addition, the electronegativity of the central atom increases steadily from P to S to Cl, which causes more electron densities to be drawn from OH group to the central atom, weakening the O–H bond and increasing the strength of the oxoacid.

Podia Question

Arrange these acids in order of decreasing acid strength (smallest pKa first, largest pKa last). Analyze the factors that affect the strength of each acid and based on that analysis explain the order of acidity.

CH3CH2OH          CF3COOH          HOClO3          CH2BrCOOH          HOClO2

Two days before the next whole-class session, this Podia question will become live on Podia, where you can submit your answer.
