1. Goal

Our goal in this section is to improve the interactivity and the efficiency of our model.

By interactivity we mean the possibility of changing the value of parameters at runtime, with immediate effect on the dynamics of the model. This feature is very convenient for exploratory work. In this section, we will implement the necessary functionality to let the user change the number of agents in the population at runtime.

By efficiency we mean implementing the model in such a way that it can be executed using as little time and memory as possible. In this section, we will modify the code of our model slightly to make it run significantly faster.

Oftentimes there is a trade-off between interactivity and efficiency: making the model more interactive generally implies some loss of efficiency. Nonetheless, sometimes we can find ways of implementing a model more efficiently without compromising its interactivity.

It is also important to be aware that –most often– there is also a trade-off between efficiency and code readability. The changes required to make our model run faster will frequently make our code somewhat less readable too. Uri Wilensky –the creator of NetLogo– and William Rand do not recommend making such comprises:

However, it is important that your code be readable, so others can understand it. In the end, computer time is cheap compared to human time. Therefore, it should be noted that, whenever there is a possibility of trade-off, clarity of code should be preferred over efficiency. Wilensky and Rand (2015, pp 219–20)

Our personal opinion is that this decision is best made case by case, taking into account the objectives and constraints of the whole modelling exercise in the specific context at hand. Our hope is that, after reading this book, you will be prepared to make these decisions by yourself in any specific situation you may encounter.

2. Motivation. Rock, paper, scissors

The dynamics of many evolutionary models strongly depend on the number of agents in the population. Can you guess how the population size affects the dynamics of the “imitate-the-better-realization” revision protocol with noise in the Rock-Paper-Scissors game? In this section we will implement the possibility of changing the population size at runtime, a feature that will greatly facilitate the exploration of this question.

3. Description of the model

We will not make any modification on the formal model our program implements. Thus, we refer to the previous section to read the description of the model. The only paragraph we add (about the program itself) is the following:

 ^CODE  4. Interactivity

Note that we can already modify the value of parameters prob-revision and noise at runtime, with immediate effect on the dynamics of the model. This is so because the values of these variables are used directly in the code. Parameter prob-revision is used only in procedure to go, in the following line:

if (random-float 1 < prob-revision) [update-strategy-after-revision]

And parameter noise is used only in procedure to update-strategy-after-revision, in the following line:

ifelse (random-float 1 < noise)

Whenever NetLogo reads the two lines of code above, it uses the current values of the two parameters. Because of this, we can modify the parameters’ values on the fly and immediately see how that change affects the dynamics of the model.

By contrast, changing the value of parameter n-of-players-for-each-strategy at runtime will have no effect whatsoever. This is so because parameter n-of-players-for-each-strategy is only used in procedure to setup-players, which is executed at the beginning of the simulation –triggered by procedure to setup– and never again.

To enable the user to modify the population size at runtime, we should create a slider for the new parameter n-of-players. Before doing so, we have to remove the declaration of the global variable n-of-players in the Code tab, since the creation of the slider implies the definition of the variable as global.

globals [
  payoff-matrix
  n-of-strategies
  ;; n-of-players      <== we remove this line
]

After creating the slider for parameter n-of-players, we could also remove the monitor showing n-of-players from the interface, since it is no longer needed. Another option (see figure 1 below) is to use that same monitor to display the value of the ticks that have gone by since the beginning of the simulation. To do this, we just have to write the primitive ticks (instead of n-of-players) in the “Reporter” box of the monitor.

The next step is to implement a separate procedure to check whether the value of parameter n-of-players differs from the current number of players in the simulation and, if it does, act accordingly. We find it natural to name this new procedure to update-n-of-players, and one possible implementation would be the following:

to update-n-of-players
  let diff (n-of-players - count players)

  if diff != 0 [
    ifelse diff > 0
    [ repeat diff [ ask one-of players [hatch-players 1] ] ]
    [ ask n-of (- diff) players [die] ]
  ]
end

Note the use of primitives hatch-players and die to clone and kill agents respectively. The difference between primitives hatch-players and create-players is important. Hatching is an action that only individual agents (i.e. “turtles” and breeds of “turtles”, in NetLogo parlance) can execute. By contrast, only the observer can run create-turtles and create-<breeds> primitives.

Finally, we should include the call to the new procedure at the beginning of to go.

to go
  update-n-of-players        ;; <== new line
  ask players [update-payoff]
  ask players [
    if (random-float 1 < prob-revision) [
      update-strategy-after-revision
    ]
  ]
  ask players [update-strategy]

  tick
  update-graph
end

And with this, we’re ready to go! Give it a try, and enjoy the good progress you are making!

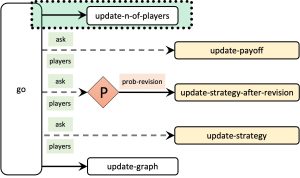

Figure 2 below shows the skeleton of our current procedure to go, highlighting the only substantial change we have made so far.

 ^CODE  6. Efficiency

Naturally, to make a model run faster, one can always untick the “view updates” box on the Interface tab. The same effect can be achieved by pushing the speed slider –situated in the middle of the interface toolbar– to its rightmost position, or by using primitive no-display in the code. This is a must in models that do not make use of the view, like the ones we are programming in this chapter, since it implies a significant speed-up at no cost. Thus, in our model, we should include the primitive no-display in procedure to setup, right after clear-all.

to setup
  clear-all
  no-display     ;; <== new line
  setup-payoffs
  setup-players
  setup-graph
  reset-ticks
  update-graph
end

But beyond this simple piece of advice, in general, how can we make our model run faster? In our view, the very first thing we have to do is to find out where our model spends most of the time. The following section shows how to do this.

6.1. Measuring execution speed of different parts of the code

There are two simple ways to measure execution speed in NetLogo. One is using primitives reset-timer and timer. For instance, to time how long it takes to have every agent carry out the operation:

other players

we could write the following reporter:

to-report time-other-players
  reset-timer
  ask players [let temporary-var other players]
  report timer
end

The second –more advanced– way of measuring execution speed involves the Profiler Extension, which comes bundled with NetLogo. This extension allows us to see how many times each procedure in our model is called during a run and how long each call takes. The extension is simple to use and well documented here. To use it in our model, we should include the extension at the beginning of our code, as follows:

extensions [profiler]

Then we could execute the following procedure, borrowed from the Profiler Extension documentation page. (Please, remember that we have to include the new procedure after the declaration of variables.)

to show-profiler-report
  setup                  ;; set up the model
  profiler:start         ;; start profiling
  repeat 1000 [ go ]     ;; run something you want to measure
  profiler:stop          ;; stop profiling
  print profiler:report  ;; print the results
  profiler:reset         ;; clear the data
end

Once the procedure is implemented, you can run it by typing its name in the Command Center.

The profiler report includes the inclusive time and the exclusive time for each procedure. Inclusive time is the time the simulation spends running the procedure, i.e. since the procedure is entered until it finishes. Exclusive time is the time passed since the procedure is entered until it finishes, but does not include any time spent in other user-defined procedures which it calls.

Let us see an example of the output printed by show-profiler-report with our current model (nxn-imitate-if-better-noise-interactive-profiler.nlogo). We model Rock-Paper-Scissors game (payoffs = [[0 -1 1][1 0 -1][-1 1 0]]), initial distribution n-of-players-for-each-strategy = [200 200 200], prob-revision = 0.1 and noise = 0.01.

BEGIN PROFILING DUMP
Sorted by Exclusive Time
Name                      Calls Incl T(ms) Excl T(ms) Excl/calls
UPDATE-PAYOFF            600000  13569.169  13569.169      0.023
UPDATE-STRATEGY          600000   7745.460   7745.460      0.013
UPDATE-STRATEGY-AFT...    60179    796.219    796.219      0.013
GO                         1000  22746.879    462.636      0.463
UPDATE-GRAPH               1000    170.606    170.606      0.171
UPDATE-N-OF-PLAYERS        1000      2.788      2.788      0.003

Sorted by Inclusive Time
GO                         1000  22746.879    462.636      0.463
UPDATE-PAYOFF            600000  13569.169  13569.169      0.023
UPDATE-STRATEGY          600000   7745.460   7745.460      0.013
UPDATE-STRATEGY-AFT...    60179    796.219    796.219      0.013
UPDATE-GRAPH               1000    170.606    170.606      0.171
UPDATE-N-OF-PLAYERS        1000      2.788      2.788      0.003

Sorted by Number of Calls
UPDATE-PAYOFF            600000  13569.169  13569.169      0.023
UPDATE-STRATEGY          600000   7745.460   7745.460      0.013
UPDATE-STRATEGY-AFT...    60179    796.219    796.219      0.013
GO                         1000  22746.879    462.636      0.463
UPDATE-GRAPH               1000    170.606    170.606      0.171
UPDATE-N-OF-PLAYERS        1000      2.788      2.788      0.003
END PROFILING DUMP

In the example above we can see –among other things– that:

• Simulations spend most of the time executing procedure to update-payoff (13 569 / 22 746 ≈ 60%). This procedure is fairly simple (it only takes 0.023 ms each time it is executed), but the problem is that it is called 600 000 times. This makes sense, since there are 600 agents in this simulation, each of them runs to update-payoff once every tick, and we ran the model for 1000 ticks (600 × 1 × 1000 = 600 000).
• After procedure to update-payoff, simulations spend most of the time running procedure to update-strategy. This procedure is extremely simple, but it is also called 600 000 times. All in all, this procedure takes 7 745 / 22 746 ≈ 34% of simulation time.
• Our implementation to allow the user to modify the number of agents at runtime hardly takes any computing time (just 2.788 ms, i.e., 2.788 / 22 746 ≈ 0.01% of simulation time).

With this information in mind, our next step is to try to identify inefficiencies in our code. These inefficiencies often take one of two possible forms:

• Computations that we conduct but we do not use at all.
• Computations that we conduct several times despite knowing that their outputs will not change.

Let us see an example of each of these inefficiencies in our current code.

6.2. Example of computations that we conduct but do not use

Note that in this model we make all agents update their payoff in every tick, but we only use the payoffs obtained by the revising agents and by the agents they observe. Thus, we can make the model run faster by asking only revising and observed agents to update their payoff. One way of implementing this efficiency improvement would be to modify the code of procedures to go and to update-strategy-after-revision as follows:

to go
  update-n-of-players
  ;; ask players [update-payoff]      <== We remove this line
  ask players [
    if (random-float 1 < prob-revision) [
      update-strategy-after-revision
    ]
  ]
  ask players [update-strategy]
  tick
  update-graph
end

to update-strategy-after-revision
  ifelse random-float 1 < noise
    [ set strategy-after-revision (random n-of-strategies) ]
    [
      let observed-player one-of other players

      update-payoff                       ;; <== new line
      ask observed-player [update-payoff] ;; <== new line

      if ([payoff] of observed-player) > payoff [
        set strategy-after-revision ([strategy] of observed-player)
      ]
    ]
end

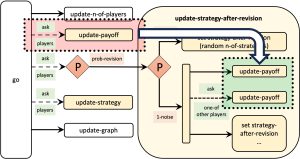

These changes, which are summarized in Figure 3 below, will make simulations with low prob-revision run much faster.

In any case, we should double check that we have made our model faster using the profiler extension. The output for the new model (nxn-imitate-if-better-noise-efficient-but-more-than-once-profiler.nlogo) is:

BEGIN PROFILING DUMP
Sorted by Exclusive Time
Name                      Calls Incl T(ms) Excl T(ms) Excl/calls
UPDATE-STRATEGY          600000   8056.915   8056.915      0.013
UPDATE-PAYOFF            118634   3013.853   3013.853      0.025
UPDATE-STRATEGY-AFT...    59894   4866.334   1852.482      0.031
GO                         1000  13623.073    373.725      0.374
UPDATE-GRAPH               1000    320.337    320.337      0.320
UPDATE-N-OF-PLAYERS        1000      5.762      5.762      0.006

Sorted by Inclusive Time
GO                         1000  13623.073    373.725      0.374
UPDATE-STRATEGY          600000   8056.915   8056.915      0.013
UPDATE-STRATEGY-AFT...    59894   4866.334   1852.482      0.031
UPDATE-PAYOFF            118634   3013.853   3013.853      0.025
UPDATE-GRAPH               1000    320.337    320.337      0.320
UPDATE-N-OF-PLAYERS        1000      5.762      5.762      0.006

Sorted by Number of Calls
UPDATE-STRATEGY          600000   8056.915   8056.915      0.013
UPDATE-PAYOFF            118634   3013.853   3013.853      0.025
UPDATE-STRATEGY-AFT...    59894   4866.334   1852.482      0.031
GO                         1000  13623.073    373.725      0.374
UPDATE-GRAPH               1000    320.337    320.337      0.320
UPDATE-N-OF-PLAYERS        1000      5.762      5.762      0.006
END PROFILING DUMP

From the report, we can draw the following inferences:

• We have significantly reduced the number of calls to procedure to update-payoff, from 600 000 down to 118 634. This number makes sense, since there were 600 agents in this simulation, prob-revision was 0.1, noise was 0.01, each revision without noise makes two calls to the procedure, and we ran the model 1000 ticks (600 × 0.1 × 0.99 × 2 × 1000 = 118 800). Note, however, that for prob-revision greater than 0.5, the number of calls would be greater with the new implementation. In general, the expected number of calls to procedure to update-payoff in the new model will be (2 × prob-revision × n-of-players × ticks).
• Our change in the code has reduced the simulation time considerably, from 22 746 down to 13 623 ms.
• Now simulations spend most of the time running procedure to update-strategy. This procedure is extremely simple, but it is called 600 000 times. All in all, this procedure takes 8 056 / 13 623 ≈ 59% of simulation time.

The changes we conducted have made our model run much faster (since prob-revision was 0.1 < 0.5). However, note that, by making these changes, we have implemented a slightly different model. In the original implementation, agents would only update their payoff once every tick, but in the new implementation, the same agent could update her payoff several times in the same tick (if, for instance, she is observed several times). This leads to a (very slightly) different distribution of payoffs. Whether this is crucial or not is a matter that would depend on the scientific question we want to answer. In any case, do not worry! We can fix this problem and, at the same time, make our model even more efficient! Let us see how!

Our goal then is to make sure that agents execute procedure to update-payoff at most once in each tick. To make that happen, we have to keep track of whether each individual agent has already executed the procedure in the current tick or not. To that end, we could define a new player-owned variable named played? that will equal true if the agent has already executed procedure to update-payoff in the current tick and false otherwise. We would also have to set the every players’ value of this new variable played? to false at the beginning of the tick. The changes we have to implement in the model to make this work are highlighted below:

players-own [
  strategy
  strategy-after-revision
  payoff
  played? ;; <== new line
]

to setup-players
  ;; ... some lines of code ... ;;

  let i 0
  foreach initial-distribution [ j ->
    create-players j [
      set payoff 0
      set strategy i
      set strategy-after-revision strategy
      set played? false ;; <== new line
    ]
    set i (i + 1)
  ]
  set n-of-players count players
end

to go
  update-n-of-players
  ask players [set played? false] ;; <== new line
  ask players [
    if (random-float 1 < prob-revision) [
      update-strategy-after-revision
    ]
  ]
  ask players [update-strategy]
  tick
  update-graph
end

to update-payoff
  let mate one-of other players
  set payoff item ([strategy] of mate) (item strategy payoff-matrix)
  set played? true ;; <== new line
end

to update-strategy-after-revision
  ifelse (random-float 1 < noise)
    [ set strategy (random n-of-strategies) ]
    [
      let observed-player one-of other players
      if not played? [update-payoff] ;; <== modified lines
      ask observed-player [if not played? [update-payoff]] ;; <==
      if ([payoff] of observed-player) > payoff [
        set strategy ([strategy] of observed-player)
      ]
    ]
end

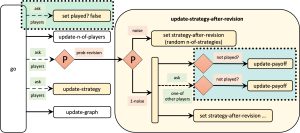

The changes implemented above are summarized in Figure 4 below.

With this new implementation, the expected number of calls to procedure to update-payoff will be less than (2 × prob-revision × n-of-players × ticks) –especially so if prob-revision is high– and never more than (n-of-players × ticks). Thus, the new implementation reduces the number of calls to procedure to update-payoff regardless of the value of prob-revision, and it implements the original model precisely. Thus, one would think that we have made our model even faster but… is that true? Let us check with the profiler extension.

The output for the new model (nxn-imitate-if-better-noise-efficient-played-profiler.nlogo) is:

BEGIN PROFILING DUMP
Sorted by Exclusive Time
Name                      Calls Incl T(ms) Excl T(ms) Excl/calls
GO                         1000  21457.028   8050.356      8.050
UPDATE-STRATEGY          600000   7716.470   7716.470      0.013
UPDATE-PAYOFF            110916   3871.700   3871.700      0.035
UPDATE-STRATEGY-AFT...    60322   5557.386   1685.686      0.028
UPDATE-GRAPH               1000    127.998    127.998      0.128
UPDATE-N-OF-PLAYERS        1000      4.817      4.817      0.005

Sorted by Inclusive Time
GO                         1000  21457.028   8050.356      8.050
UPDATE-STRATEGY          600000   7716.470   7716.470      0.013
UPDATE-STRATEGY-AFT...    60322   5557.386   1685.686      0.028
UPDATE-PAYOFF            110916   3871.700   3871.700      0.035
UPDATE-GRAPH               1000    127.998    127.998      0.128
UPDATE-N-OF-PLAYERS        1000      4.817      4.817      0.005

Sorted by Number of Calls
UPDATE-STRATEGY          600000   7716.470   7716.470      0.013
UPDATE-PAYOFF            110916   3871.700   3871.700      0.035
UPDATE-STRATEGY-AFT...    60322   5557.386   1685.686      0.028
GO                         1000  21457.028   8050.356      8.050
UPDATE-GRAPH               1000    127.998    127.998      0.128
UPDATE-N-OF-PLAYERS        1000      4.817      4.817      0.005
END PROFILING DUMP

The following table shows the simulation times and the number of calls to procedure to update-payoff of the different models we have programmed in this section up until now, in chronological order:

Table 1. Simulation times and number of calls to procedure to update-payoff of all the models implemented in this section up until now

It may come as a surprise that the last changes we made, which ensure that the model calls procedure to update-payoff as few times as possible, actually make the model much slower, from 13 623 ms up to 21 457 ms! Oh, no! How is that possible? We are calling procedure to update-payoff fewer times! (We went from 118 634 down to 110 916.) Take a look at the profiler report above and try to come up with an answer… This is a tricky one…

ask players [set played? false] ;; <== new line

Our goal now is to implement the same model, but without having to explicitly tell every agent at the beginning of every tick that they have not played yet.

One way we can do this is by using a player-owned variable named tick-I-played-last (instead of boolean variable played?) that will store the tick number at which the player updated her payoff for the last time. Then, we would ask players to update their payoff only if the value of their tick-I-played-last is less than the current tick. The key difference with the previous model is that we do not have to set the value of this new variable tick-I-played-last every tick for every player.

Model nxn-imitate-if-better-noise-efficient-tick-I-played-last-profiler.nlogo implements these changes, which are summarized in Figure 5 below.

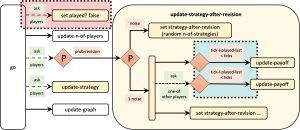

All the necessary changes in the code are highlighted below:

players-own [
  strategy
  strategy-after-revision
  payoff
  ;; played?            <== deleted line
  tick-I-played-last ;; <== new line
]

to setup-players

  ;; ... some lines of code ... ;;

  let i 0
  foreach initial-distribution [ j ->
    create-players j [
      set payoff 0
      set strategy i
      set strategy-after-revision strategy
      ;; set played? false         <== deleted line
      set tick-I-played-last -1 ;; <== new line
    ]
    set i (i + 1)
  ]

  set n-of-players count players
end

to go
  update-n-of-players
  ;; ask players [set played? false] <== deleted line
  ask players [
    if (random-float 1 < prob-revision) [
      update-strategy-after-revision
    ]
  ]
  ask players [update-strategy]
  tick
  update-graph
end

to update-payoff
  let mate one-of other players
  set payoff item ([strategy] of mate) (item strategy payoff-matrix)
  ;; set played? true             <== deleted line
  set tick-I-played-last ticks ;; <== new line
end

to update-strategy-after-revision
  ifelse random-float 1 < noise
    [ set strategy-after-revision (random n-of-strategies) ]
    [
      let observed-player one-of other players
      ;; vvv modified lines below vvv
      if (tick-I-played-last < ticks) [update-payoff]
      ask observed-player [
        if (tick-I-played-last < ticks) [update-payoff]
      ]

      if ([payoff] of observed-player) > payoff [
        set strategy-after-revision ([strategy] of observed-player)
      ]
    ]
end

The output of profiler for the new model (nxn-imitate-if-better-noise-efficient-tick-I-played-last-profiler.nlogo) is:

BEGIN PROFILING DUMP
Sorted by Exclusive Time
Name                      Calls Incl T(ms) Excl T(ms) Excl/calls
UPDATE-STRATEGY          600000   7462.968   7462.968      0.012
UPDATE-PAYOFF            110211   3927.434   3927.434      0.036
UPDATE-STRATEGY-AFT...    59846   5527.475   1600.041      0.027
GO                         1000  13416.363    279.186      0.279
UPDATE-GRAPH               1000    144.769    144.769      0.145
UPDATE-N-OF-PLAYERS        1000      1.964      1.964      0.002

Sorted by Inclusive Time
GO                         1000  13416.363    279.186      0.279
UPDATE-STRATEGY          600000   7462.968   7462.968      0.012
UPDATE-STRATEGY-AFT...    59846   5527.475   1600.041      0.027
UPDATE-PAYOFF            110211   3927.434   3927.434      0.036
UPDATE-GRAPH               1000    144.769    144.769      0.145
UPDATE-N-OF-PLAYERS        1000      1.964      1.964      0.002

Sorted by Number of Calls
UPDATE-STRATEGY          600000   7462.968   7462.968      0.012
UPDATE-PAYOFF            110211   3927.434   3927.434      0.036
UPDATE-STRATEGY-AFT...    59846   5527.475   1600.041      0.027
GO                         1000  13416.363    279.186      0.279
UPDATE-GRAPH               1000    144.769    144.769      0.145
UPDATE-N-OF-PLAYERS        1000      1.964      1.964      0.002
END PROFILING DUMP

It is then corroborated that this last version is the most efficient (comparable to the second one if prob-revision is low) and it implements the original model exactly. The table below shows the simulation times and the number of calls to procedure to update-payoff of all the models implemented in this section up until now:

Table 2. Simulation times and number of calls to procedure to update-payoff of all the models implemented in this section up until now

Finally, note that, looking at the output printed by show-profiler-report, it still seems wasteful to make all agents update their strategies, even when they do not revise them. In exercise 5 below, we ask you to think about how you would make only revising agents call procedure to update-strategy.

6.3. Example of computations that we conduct several times when once would do

Let us now focus on the second type of inefficiency pointed out above. Can you identify any computations that we repeatedly conduct in every tick, even though its result does not change?

Note that we undertake the computation:

other players

several times in every tick, but we could conduct it just once for each agent in each simulation. To be sure, we conduct that operation every time an agent computes her payoff in to update-payoff:

let mate one-of other players

And also every time an agent revises her strategy in to update-strategy-after-revision:

let observed-agent one-of other players

This computation may not sound very expensive, but if the number of agents is large, it may well be (see exercise 3 below). To make the model run faster, we could create an individually-owned variable named e.g. other-players, as follows

players-own [
  strategy
  strategy-after-revision
  payoff
  tick-I-played-last
  other-players
]

And then we should set the new individually-owned variable other-players to the appropriate value only once at the beginning of each simulation (at the end of procedure to setup-players).

ask players [ set other-players other players ]

Since we may change the number of players at runtime, we should also include the line above in the block of code where we clone or kill agents in procedure to update-n-of-players, i.e.

to update-n-of-players
  let diff (n-of-players - count players)
  if diff != 0 [
    ifelse diff > 0
    [ repeat diff [ ask one-of players [hatch-players 1] ] ]
    [ ask n-of (- diff) players [die] ]
    ask players [set other-players other players]
  ]
end

Once we have done that, in the two lines of code where we had the reporter

other players

we should write other-players instead. These changes will make simulations with many players run faster. To find out how much faster, we should use the profiler extension again. The report of profiler for the new model (nxn-imitate-if-better-noise-efficient-tick-I-played-last-and-other-players-profiler.nlogo) is:

BEGIN PROFILING DUMP
Sorted by Exclusive Time
Name                      Calls Incl T(ms) Excl T(ms) Excl/calls
UPDATE-STRATEGY          600000   7923.625   7923.625      0.013
UPDATE-PAYOFF            110079   3063.731   3063.731      0.028
UPDATE-STRATEGY-AFT...    59798   4255.300   1191.569      0.020
GO                         1000  12607.398    283.696      0.284
UPDATE-GRAPH               1000    141.295    141.295      0.141
UPDATE-N-OF-PLAYERS        1000      3.482      3.482      0.003

Sorted by Inclusive Time
GO                         1000  12607.398    283.696      0.284
UPDATE-STRATEGY          600000   7923.625   7923.625      0.013
UPDATE-STRATEGY-AFT...    59798   4255.300   1191.569      0.020
UPDATE-PAYOFF            110079   3063.731   3063.731      0.028
UPDATE-GRAPH               1000    141.295    141.295      0.141
UPDATE-N-OF-PLAYERS        1000      3.482      3.482      0.003

Sorted by Number of Calls
UPDATE-STRATEGY          600000   7923.625   7923.625      0.013
UPDATE-PAYOFF            110079   3063.731   3063.731      0.028
UPDATE-STRATEGY-AFT...    59798   4255.300   1191.569      0.020
GO                         1000  12607.398    283.696      0.284
UPDATE-GRAPH               1000    141.295    141.295      0.141
UPDATE-N-OF-PLAYERS        1000      3.482      3.482      0.003
END PROFILING DUMP

We can see that the execution time of procedures to update-payoff and to update-strategy-after-revision has been reduced, as expected, but the overall simulation time has not decreased substantially. The table below summarizes the simulation times and the number of calls to procedure to update-payoff of all the models implemented in this section:

Table 3. Simulation times and number of calls to procedure to update-payoff of all the models implemented in this section

6.4. Other tips to improve the efficiency of NetLogo code

Railsback et al. (2017) give several guidelines to identify slow parts of NetLogo code and make them run faster, providing specific examples for agent-based models written in NetLogo.

6.5. Take-home message

The main lesson we would like you to take home from this section is methodological: if you want to make a model run faster, you should definitely use the profiler extension, i.e. start by looking at the data. This is because NetLogo, like any other programming language, has been optimized to compute things in a certain way, and this way may be different from other programming languages you may be familiar with, and may even change from one version of NetLogo to the next. Thus, our most important piece of advice is: look at the evidence by using the profiler extension and try different ways of coding. By doing so, you will develop skills that will help you implement your models more efficiently.

 ^CODE  7. Complete code in the Code tab

extensions [profiler]

globals [
  payoff-matrix
  n-of-strategies
]

breed [players player]

players-own [
  strategy
  strategy-after-revision
  payoff
  tick-I-played-last
  other-players
]

to show-profiler-report
  setup                  ;; set up the model
  profiler:start         ;; start profiling
  repeat 1000 [ go ]     ;; run something you want to measure
  profiler:stop          ;; stop profiling
  print profiler:report  ;; print the results
  profiler:reset         ;; clear the data
end

to setup
  clear-all
  no-display
  setup-payoffs
  setup-players
  setup-graph
  reset-ticks
  update-graph
end

to setup-payoffs
  set payoff-matrix read-from-string payoffs
  set n-of-strategies length payoff-matrix
end

to setup-players
  let initial-distribution read-from-string n-of-players-for-each-strategy

  if length initial-distribution != length payoff-matrix [
    user-message (word "The number of items in\n"
      "n-of-players-for-each-strategy (i.e. "
      length initial-distribution "):\n"
      n-of-players-for-each-strategy
      "\nshould be equal to the number of rows\n"
      "in the payoff matrix (i.e. "
      length payoff-matrix "):\n"
      payoffs
    )
  ]

  let i 0
  foreach initial-distribution [ j ->
    create-players j [
      set payoff 0
      set strategy i
      set strategy-after-revision strategy
      set tick-I-played-last -1
    ]
    set i (i + 1)
  ]

  set n-of-players count players
  ask players [ set other-players other players ]
end

to setup-graph
  set-current-plot "Strategy Distribution"
  foreach (range n-of-strategies) [ i ->
    create-temporary-plot-pen (word i)
    set-plot-pen-mode 1
    set-plot-pen-color 25 + 40 * i
  ]
end

to go
  update-n-of-players
  ask players [
    if (random-float 1 < prob-revision) [
      update-strategy-after-revision
    ]
  ]
  ask players [update-strategy]
  tick
  update-graph
end

to update-payoff
  let mate one-of other-players
  set payoff item ([strategy] of mate) (item strategy payoff-matrix)
  set tick-I-played-last ticks
end

to update-strategy-after-revision
  ifelse random-float 1 < noise
    [ set strategy-after-revision (random n-of-strategies) ]
    [
      let observed-player one-of other-players

      if (tick-I-played-last < ticks) [update-payoff]
      ask observed-player [
        if (tick-I-played-last < ticks) [update-payoff]
      ]

      if ([payoff] of observed-player) > payoff [
        set strategy-after-revision ([strategy] of observed-player)
      ]
    ]
end

to update-strategy
  set strategy strategy-after-revision
end

to update-graph
  let strategy-numbers (range n-of-strategies)
  let strategy-frequencies map [ n ->
        count players with [strategy = n] / n-of-players
      ] strategy-numbers

  set-current-plot "Strategy Distribution"
  let bar 1
  foreach strategy-numbers [ n ->
    set-current-plot-pen (word n)
    plotxy ticks bar
    set bar (bar - (item n strategy-frequencies))
  ]
  set-plot-y-range 0 1
end

to update-n-of-players
  let diff (n-of-players - count players)
  if diff != 0 [
    ifelse diff > 0
    [ repeat diff [ ask one-of players [hatch-players 1] ] ]
    [ ask n-of (- diff) players [die] ]
    ask players [ set other-players other players ]
  ]
end

8. Sample run

Now that we can change the population size at runtime, we can easily explore the question posed above: How does population size affect the dynamics of the “imitate-the-better-realization” revision protocol with noise in the Rock-Paper-Scissors game? To do that, let us use the same setting as in the previous sections (i.e. payoffs = [[0 -1 1][1 0 -1][-1 1 0]] and prob-revision = 0.1), start with a small population of 60 agents (n-of-players-for-each-strategy = [20 20 20]), and then, increase n-of-players up to 2000 at runtime. The following video shows a representative run with these settings, where we increased the population size from 60 to 2000 at tick 4000.

As you can see, when the number of agents is small, the population consistently follows cycles of large amplitude among the three strategies. The cycles are so wide that sometimes one or even two strategies go extinct for a while. In stark contrast, when the population is large, the cycles get much smaller and the population tends to linger around the state where each strategy is used by approximately a third of the population.^[1]

9. Exercises

You can use the following link to download the last NetLogo model we implemented in this section: nxn-imitate-if-better-noise-efficient-tick-I-played-last-and-other-players-profiler.nlogo.

 ^CODE  Exercise 1. In this section we have improved both the interactivity and the efficiency of our model. Can you quantify how much faster the last version of our code runs compared to the previous one (nxn-imitate-if-better-noise)? For the sake of concreteness, use 1000-tick simulations with payoffs = [[0 -1 1][1 0 -1][-1 1 0]], initial distribution n-of-players-for-each-strategy = [300 300 300], prob-revision = 0.1 and noise = 0.01.

Exercise 2. In this section we have drastically reduced the number of times that procedure to update-payoff is called. Can you derive an analytical approximation to the percentage of calls to this procedure that the new implementation is expected to save, as a function of prob-revision and n-of-players? (You may consider noise = 0 initially).

Plot of an approximation to the expected percentage of calls to procedure to update-payoff that are saved

The plot below shows an approximation to the expected percentage of calls to procedure to update-payoff that the last three NetLogo models implemented in this section save (i.e., the efficient models that guarantee that players execute this procedure at most once in each tick), as a function of prob-revision, for different values of the number of players n-of-players. It is interesting to see that this function is not very sensitive to the number of players n-of-players. It is assumed that noise = 0.

 ^CODE  Exercise 3. In this section we have reduced the number of times the computation other players is conducted by creating an individually-owned variable (named other-players). To compare these two approaches, write a short NetLogo program where 10000 agents conduct this operation.

^CODE Exercise 4. What changes would you have to make in the code so revising agents within the tick update their strategies sequentially (in random order), rather than simultaneously?

 ^CODE  Exercise 5. What changes would you have to make in the code so it is only revising agents that call procedure to update-strategy? Use the profiler extension to find out whether the new model is faster. To facilitate the comparison, use the same parameter settings as in Table 3.

let revising-players players with [random-float 1 < prob-revision]
